Respiratory System

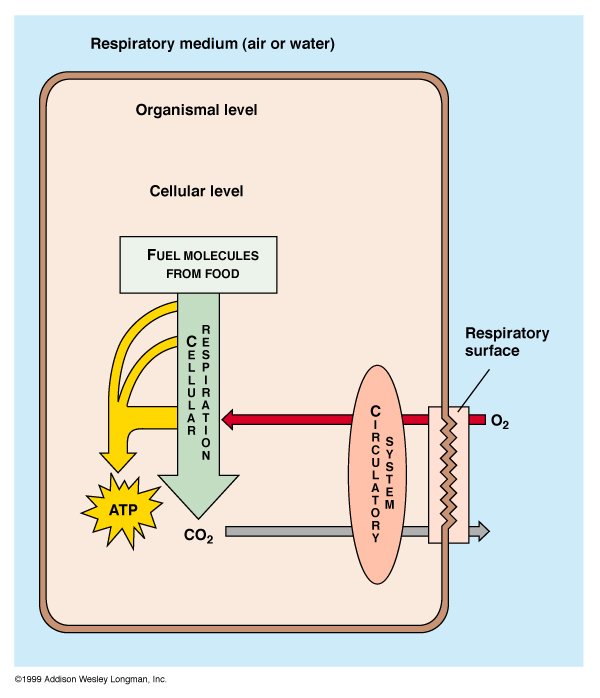

Why do we need a respiratory system?

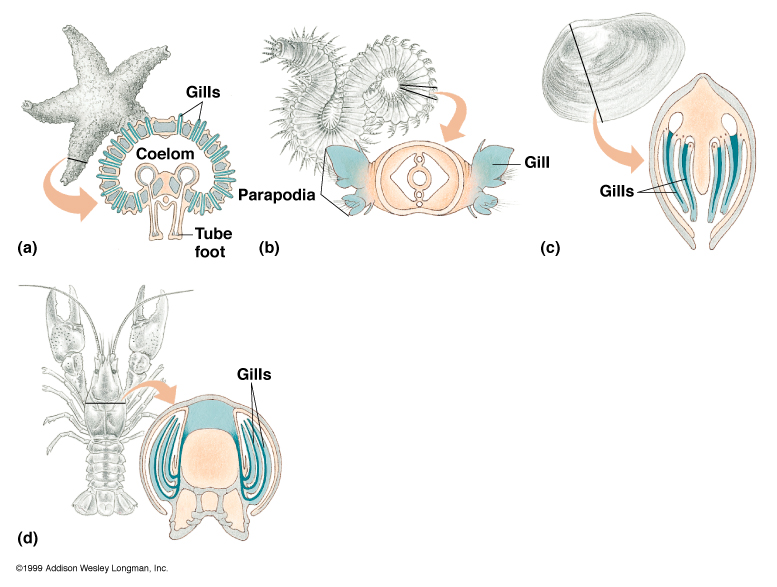

Respiratory systems in diverse animals
- Aquatic Invertebrates
have gills
- Insects
have hollow tubes called tracheae
- Fish have
complex gills
- Frogs
breathe through their skin and lungs

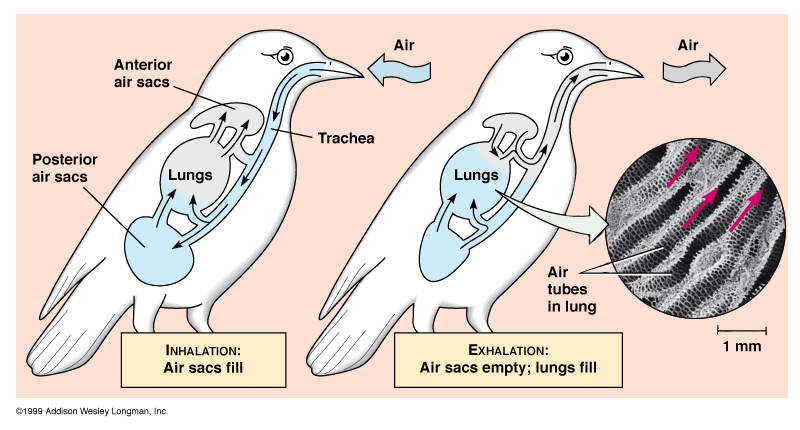

- Birds have a
one-way respiratory system
- Mammals
have lungs with many branches
- Oral cavity & Nose: Filter, warm and humidify air
- Trachea: Conduct air to lungs & trap particles
- Bronchi
& bronchioles branch ~ 23 times
- Alveoli: tiny sacs for gas exchange
- Pulmonary circulation
- Pulmonary artery: brings oxygen-poor blood from the heart
- Pulmonary capillaries: pick up oxygen, release CO2
- Pulmonary vein: takes oxygen-rich blood back to the heart

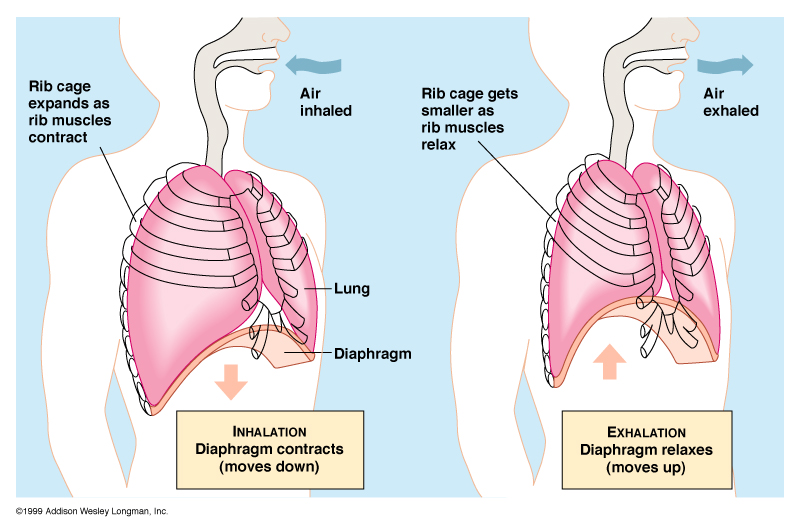

How breathing (ventilation) works
Negative pressure
breathing
- Inhaling
- Diaphragm contracts (lowers)
- Rib cage raised
- Chest cavity expands
- This creates negative pressure inside lungs (suction!)
- Exhaling
- Diaphragm relaxes
- Rib cage lowered
- Chest cavity compresses
- This creates higher pressure in lungs (forces air out)
- Forced respiration (e.g. exercise)
- Rib muscles assist in inhaling, exhaling

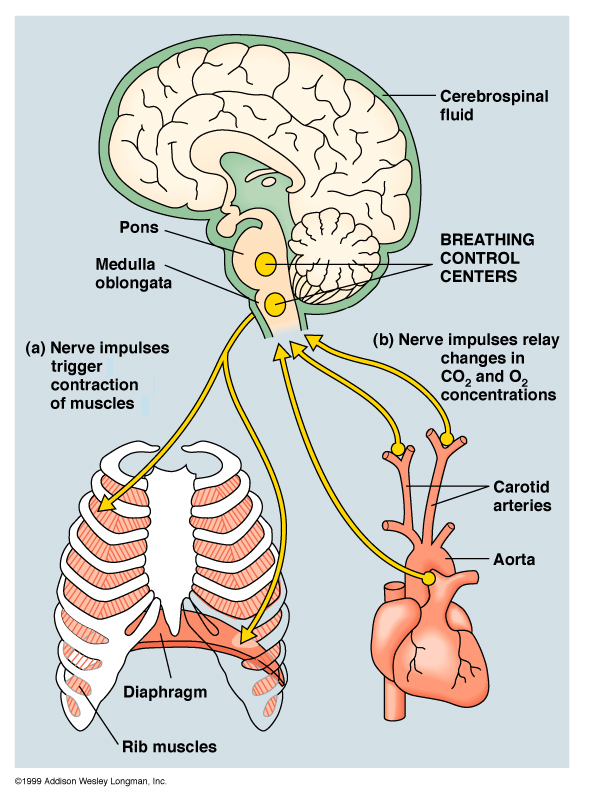

- Control of
breathing
- Breathing is controlled by the brain stem (medulla)
- Respiratory center there tells muscles to contract (inhale) every so
often
- Can speed up breathing if:
- Oxygen is low
- CO2 is high
- Blood pH is low
Gas exchange and transport

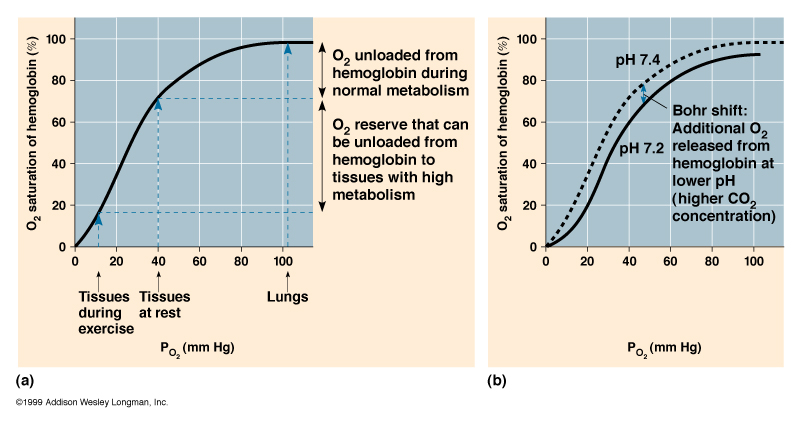

- Oxygen
transport
- Red blood cells!
- Hemoglobin: a protein with iron in it

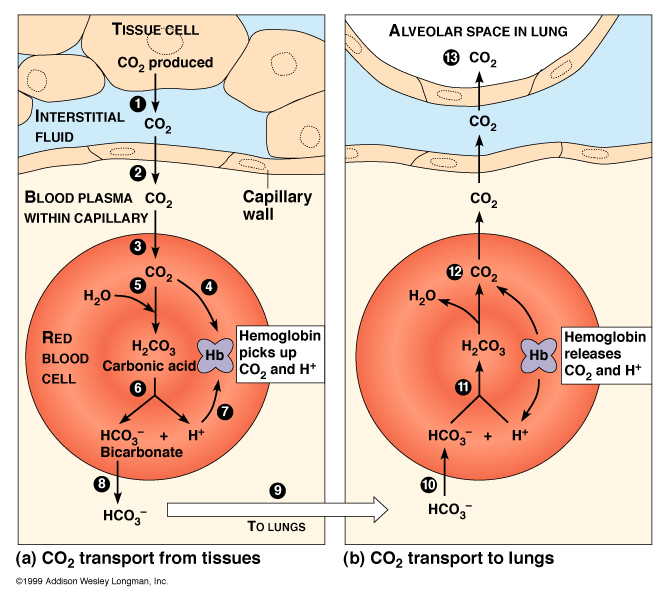

- CO2 transport
- In plasma: CO2
- In red blood cells
Respiratory disorders
- Emphysema:
breakdown of alveoli
- Smoking
- Carbon
monoxide poisoning
- Anemia
